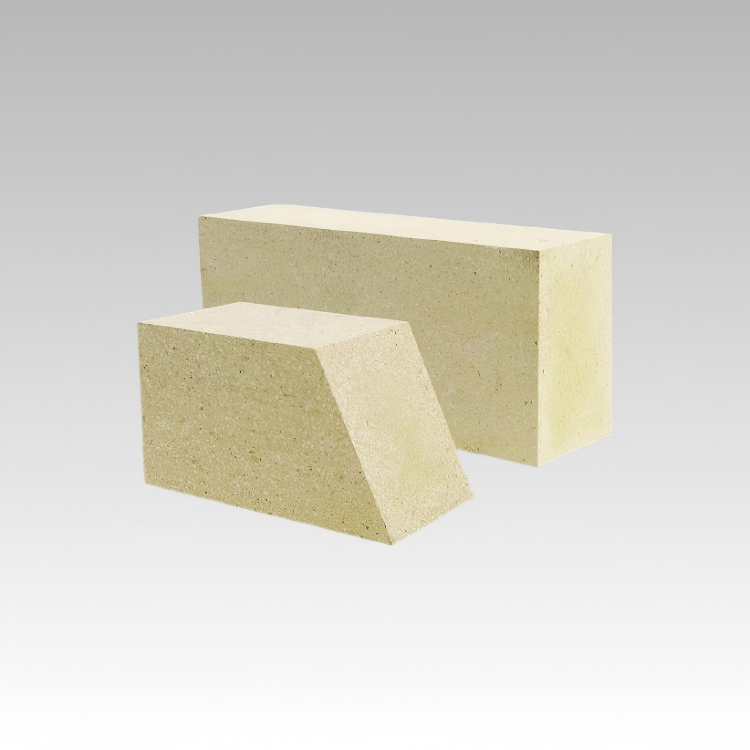

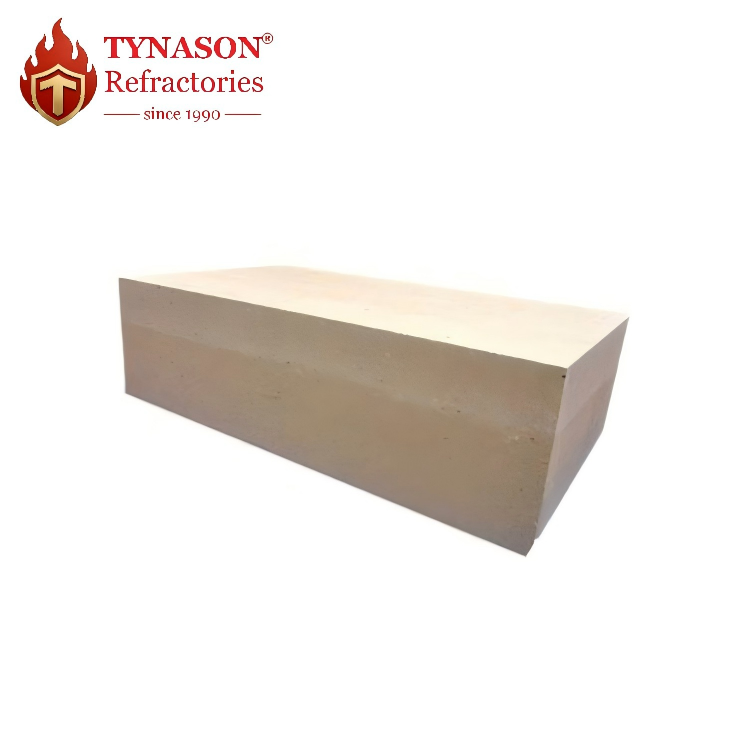

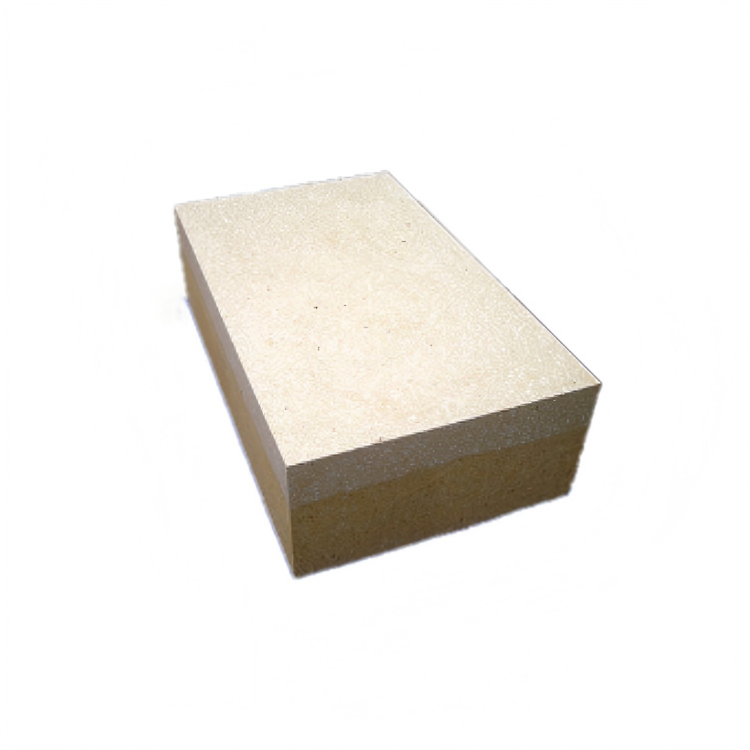

Glass Furnace Big Clay Brick

Used for glass furnace bottom, float glass furnace tin tank bottom, glass electric furnace and other parts.

Product Description:

Product Description

阿里 (1).jpg

Glass Furnace Big Clay Brick Description:

Process: Vibration molding. The special refractory castable is placed in specific moulds, vibrated with a large flat vibration table, and the semi-finished product is dried and fired at high temperature, and then processed by cutting and grinding.

Main raw materials: The flint clay(particles) produced in Zibo, Al2O3 content is about 44%, Fe2O3<2%. The composition is stable, the texture is uniform, the structure is dense, the section is shell-like and white, and it is used for the production of high-quality clay refractories.

Glass Furnace Big Clay Brick Features:

Performance: Good resistance to glass liquid corrosion and alkali corrosion

No peeling

Good thermal shock stability

High machining accuracy and easy installation

Its physical and chemical indicators and appearance are better than national standards

Specification

Glass Furnace Big Clay Brick Physical and chemical index:

Items	PhysicalandChemicalIndexs
Items	BN-40	BN-60
Al2O3 %	≥43	≥61
Fe2O3 %	≤1.3	≤1.3
Apparent Porosity (%)	≤18	≤19
Bulk Density (g/cm3) ≥	2.35	2.45
Refractoriness ℃≥	1750	1770
Refractoriness under load,℃	1400	1550
Variation of Re-Burning Line 1400℃×2h	+0.1/-0.4	+0.1/-0.3

Product Application

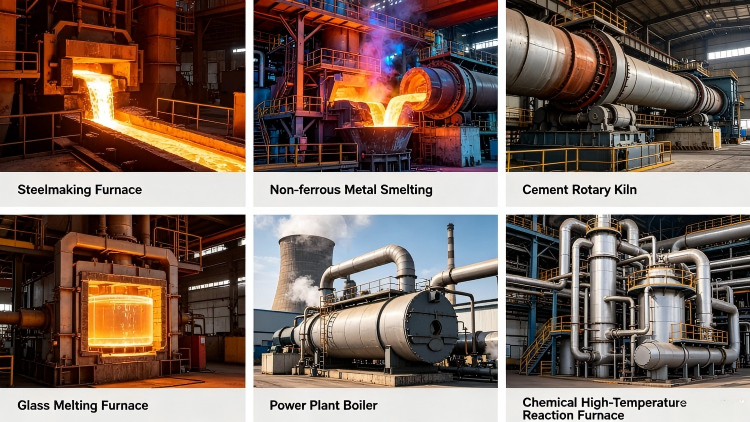

Refractory bricks are widely used as high-temperature lining materials for industrial high-temperature equipment, including steelmaking furnaces, non-ferrous metal smelting kilns, cement rotary kilns, glass melting furnaces, ceramic firing kilns, power plant boilers, waste incinerators and chemical high-temperature reaction furnaces.

阿里 (3).png

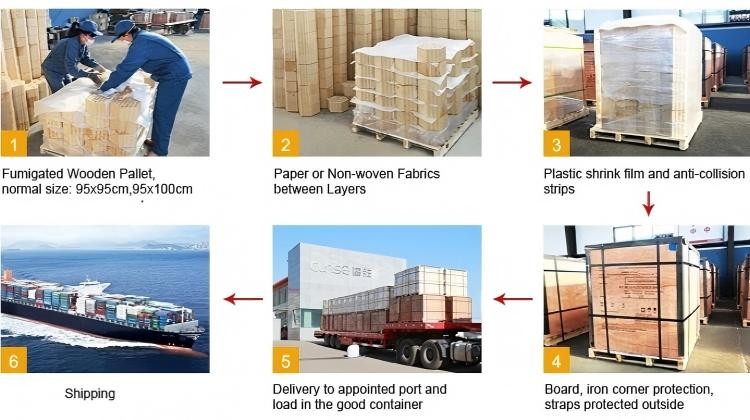

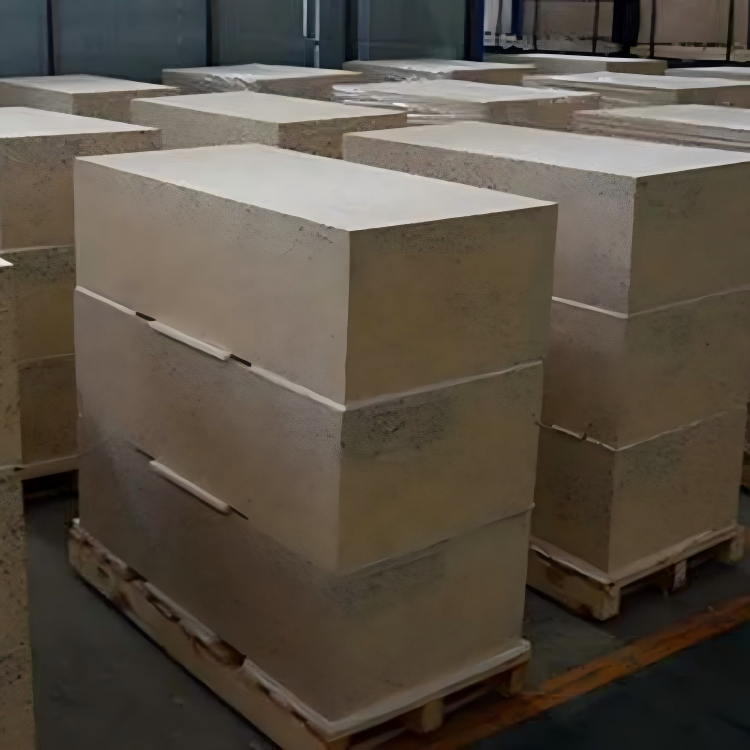

Packing & Delivery

Wooden pallets with plastic film or according to your request.

1. Dustproof & waterproof, protect refractory bricks from moisture and dirt.

2. Stable bundling, prevent bricks from shifting or breaking during transit.

3. Easy loading & unloading, improve container space utilization.

阿里 (5).jpg

阿里 (6).png

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Company Profile

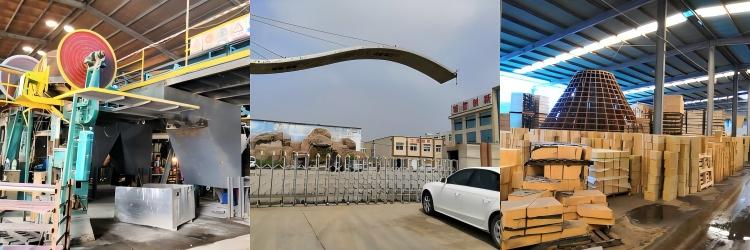

Zhengzhou Tynason New Material Co. Ltd. (formerly Yudeng Refractory Bricks Factory) was founded in 1990, which is committed to research and development of refractory materials, and has gradually developed into a production-oriented enterprise mainly exporting special-shaped refractory materials. It ’s located in Dengfeng, Zhengzhou, where is a high-quality raw material base for refractory materials, near Qingdao port enjoying advantageous location and convenient transportation.

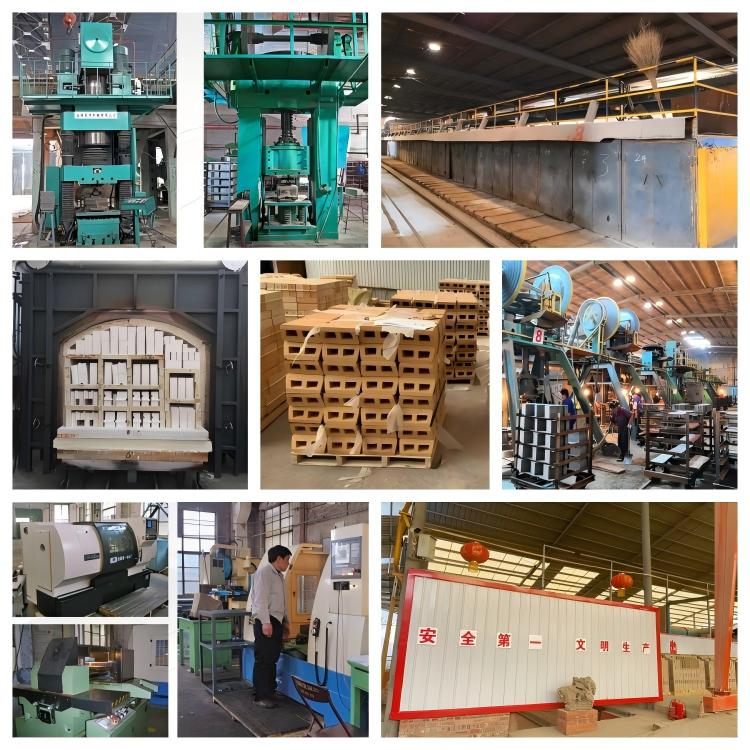

Tynason possesses advanced production equipment and production lines, including : 1 tunnel kiln with 148 meters, 6 high temperature shuttle kiln at 1750℃ , 2 high temperature shuttle kilns at 1550℃ , 10 units 400-1000 ton hydraulic presses, 2 vibration forming presses, and 2 automatic production line for vibration forming large bricks.
