Silica Brick

Silica Brick Verified-Supplier Bulk Order Discount High Temperature Resistant Silica Brick

Product Description:

Product Description

Silica Brick Description:

Silica brick is premium acidic refractory brick with SiO₂≥94%, made of high-purity quartzite. It features ultra-high refractoriness under load, excellent acid slag corrosion resistance and stable volume under long-term high-temperature service. Widely used for coke ovens, glass melting furnaces, hot blast stoves and acidic kiln vaults. Custom sizes & special shapes available, ISO certified factory direct supply.

Silica Brick Features:

(1)High refractoriness under load.
(2)High heat conductivity.
(3)Good thermal shock resistance.
(4)Solidity stable of capacity in high temperature.

Specification

Silica Brick Physical and chemical index:

Item	BG-94	BG-95	BG-96A	BG-96B
SiO₂ (%)	≥94	≥95	≥96	≥96
Al₂O₃ (%)	≤1.5	≤1.5	≤0.5	≤0.5
Fe₂O₃ (%)	≤1.5	≤0.8	≤0.7	≤0.7
K₂O+Na₂O (%)	CaO≤2.5
Refractoriness (°C)	≥1710	≥1710	≥1710	≥1710
Refractoriness Under Load (KD)	≥1650	≥1680	≥1680	≥1680
Permanent Linear Change (%) (1450°C×2h)	0 ~ +0.2	0 ~ +0.2	0 ~ +0.2	0 ~ +0.2
Apparent Porosity (%)	≤24	≤22	≤21	≤21
Bulk Density (g/cm³)	≤2.33	≤2.34	≤2.35	≤2.35
Cold Crushing Strength (MPa)	≥30	≥35	≥35	≥35
Creep Rate (%) (0.2MPa)	≤1.0%	≤1.0%	≤1.0%	≤1.0%

Product Application

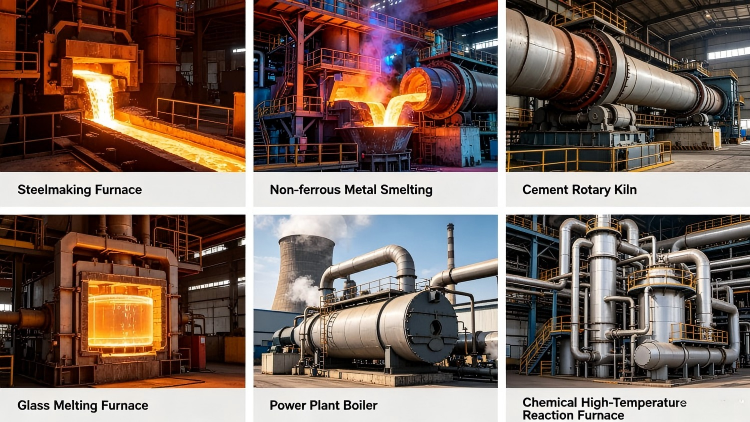

Refractory bricks are widely used as high-temperature lining materials for industrial high-temperature equipment, including steelmaking furnaces, non-ferrous metal smelting kilns, cement rotary kilns, glass melting furnaces, ceramic firing kilns, power plant boilers, waste incinerators and chemical high-temperature reaction furnaces.

阿里 (3).png

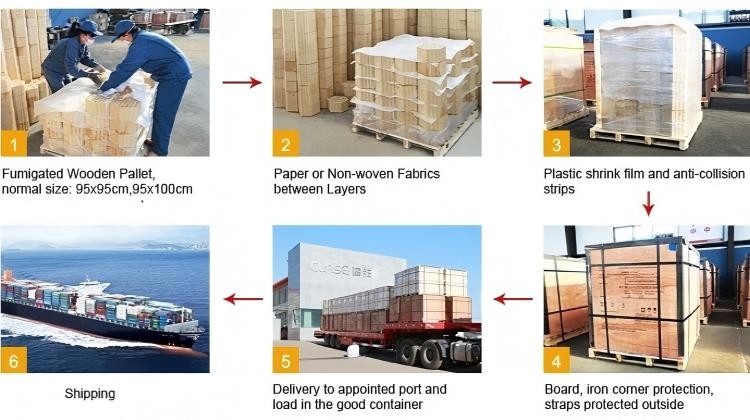

Packing & Delivery

Wooden pallets with plastic film or according to your request.

1. Dustproof & waterproof, protect refractory bricks from moisture and dirt.

2. Stable bundling, prevent bricks from shifting or breaking during transit.

3. Easy loading & unloading, improve container space utilization.

阿里 (5).jpg 阿里 (6).png

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Company Profile

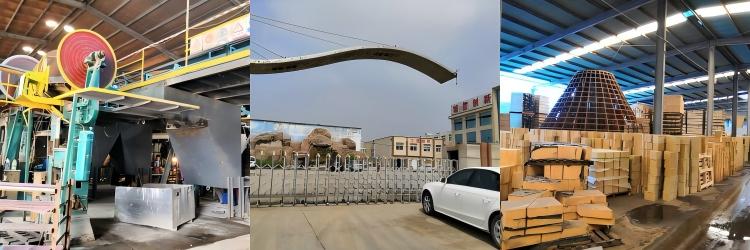

Zhengzhou Tynason New Material Co. Ltd. (formerly Yudeng Refractory Bricks Factory) was founded in 1990, which is committed to research and development of refractory materials, and has gradually developed into a production-oriented enterprise mainly exporting special-shaped refractory materials. It ’s located in Dengfeng, Zhengzhou, where is a high-quality raw material base for refractory materials, near Qingdao port enjoying advantageous location and convenient transportation.

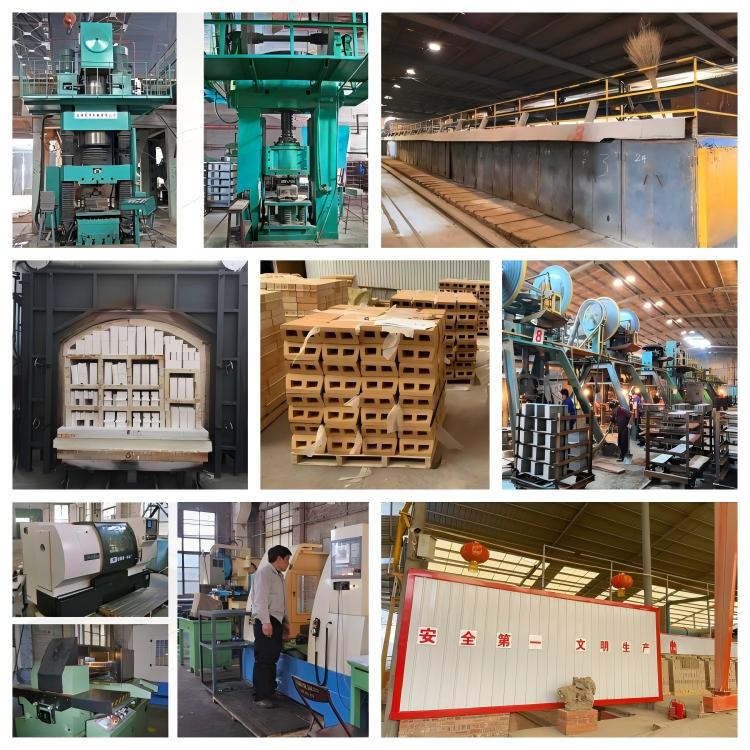

Tynason possesses advanced production equipment and production lines, including : 1 tunnel kiln with 148 meters, 6 high temperature shuttle kiln at 1750℃ , 2 high temperature shuttle kilns at 1550℃ , 10 units 400-1000 ton hydraulic presses, 2 vibration forming presses, and 2 automatic production line for vibration forming large bricks.
