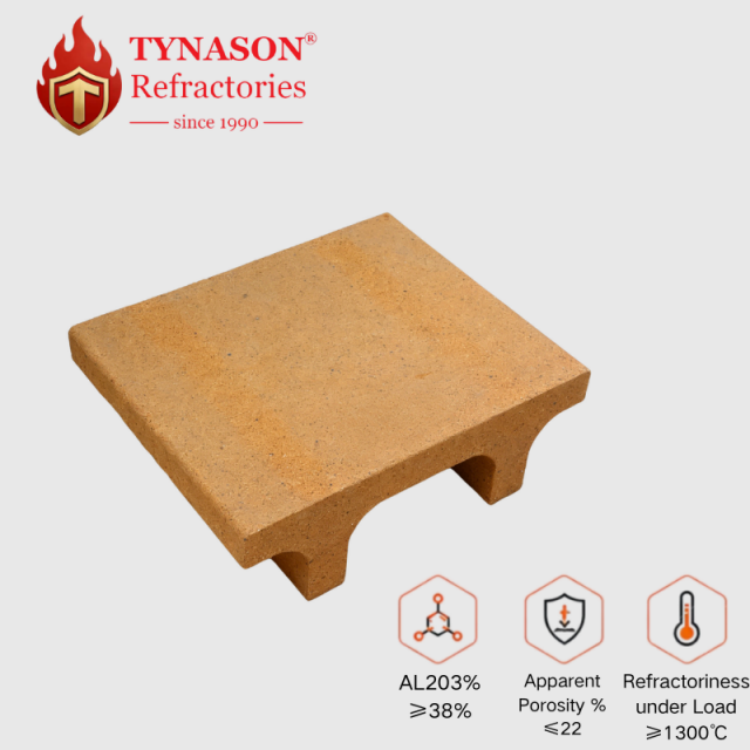

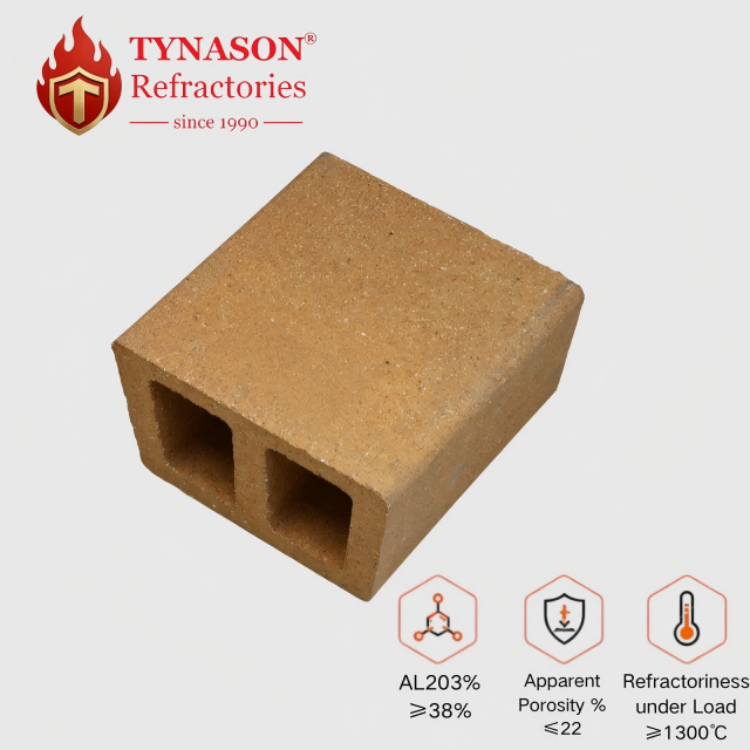

Zibo Bauxite-Cordierite Series Kiln Car Furniture

【Product Introduction】

Tynason Zibo Bauxite-Cordierite Series Kiln Car Furniture is a high-performance refractory product manufactured from premium raw materials. The bauxite is carefully selected from the world-renowned Zibo deposit in China, recognized globally for its exceptional thermal shock stability. Combined with high-purity synthetic cordierite and processed through large-tonnage pressing and high-temperature firing, this series delivers outstanding durability and performance for tunnel kiln applications.

【Product Advantages】

World-Class Raw Material: Bauxite sourced from the Zibo deposit, certified by Saint-Gobain France (Al₂O₃ ≥42%, thermal shock ≥45 cycles at 1100℃) and NGK Japan (Technical Certification No. ZB-FC-1001).

High Purity Cordierite: Made from high-purity synthetic cordierite with no cheap talc addition, ensuring consistent quality and superior thermal shock resistance.

Superior Thermal Shock Resistance: With thermal shock resistance of ≥60 cycles at 1100℃, these bricks withstand rapid temperature fluctuations without cracking, minimizing downtime and maintenance.

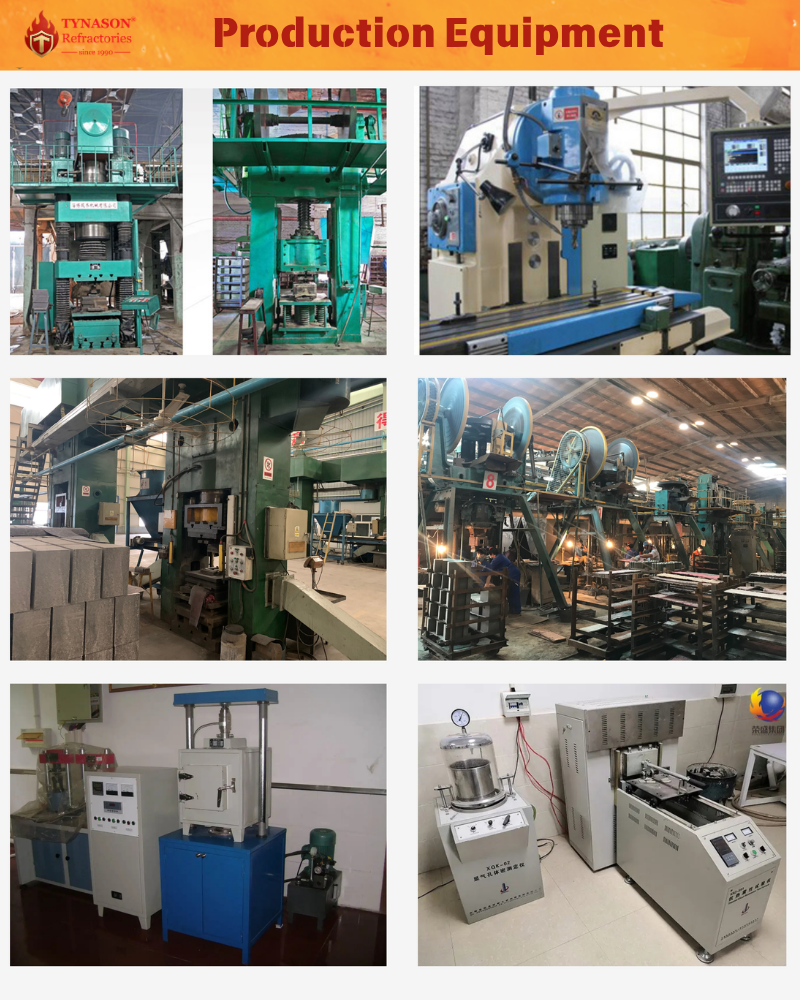

High Compactness & Strength: Pressed by large-tonnage presses (400-1000T) for high density, with cold crushing strength ≥35 MPa and apparent porosity ≤22%.

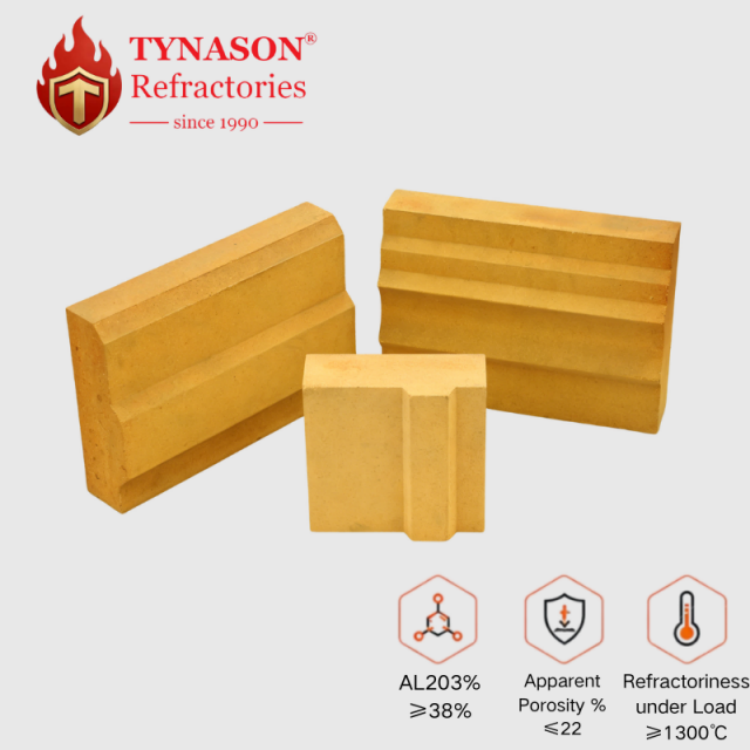

Customized Solutions: Special-shaped bricks available upon drawing with maximum pressed length of 500mm, meeting diverse kiln design requirements.

Cost-Effective: Significantly longer service life than similar talc-based products, reducing total cost of ownership.

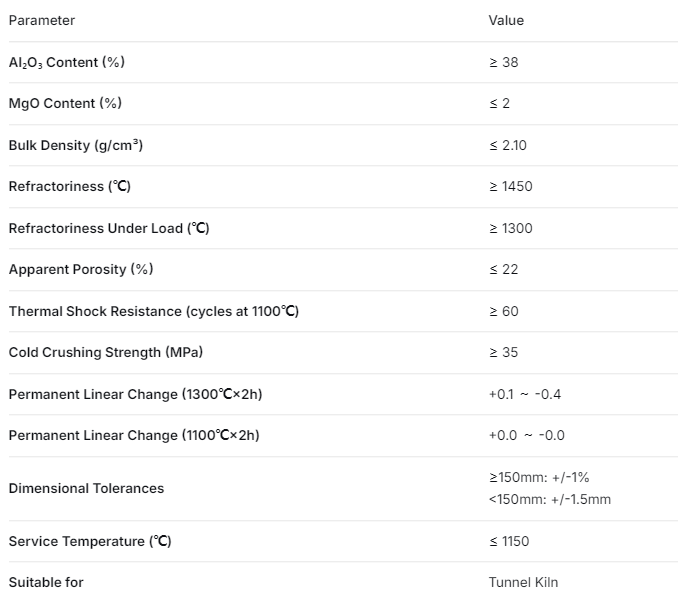

【Technical Specifications】

Note: Data derived from standard test specimens under laboratory conditions.

Field-proven performance of engineered kiln furniture (≥1m³) exhibits superior thermal-mechanical behavior in actual service.

【Applications】

Tynason Bauxite-Cordierite Kiln Car Furniture is ideal for:

Tunnel kiln car bricks for ceramic and sanitary ware firing

Low to medium temperature zones of various industrial kilns

Applications requiring strong thermal shock resistance at temperatures ≤1150℃

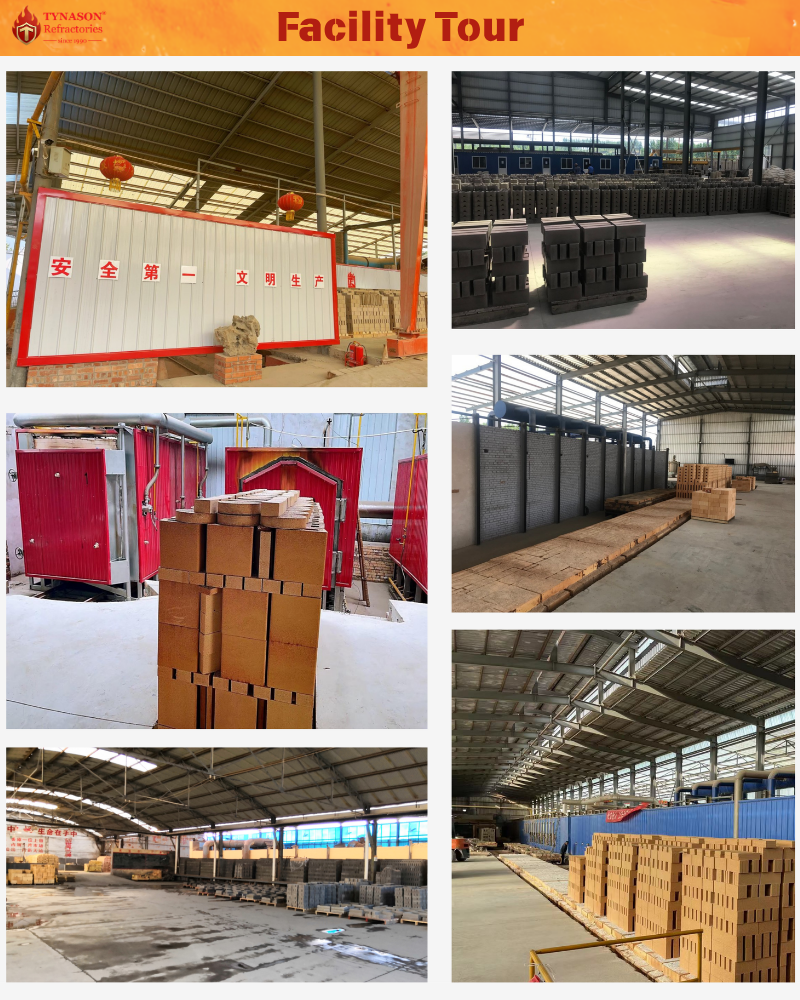

Over 30 years of experience in refractory manufacturing

Raw materials from the world-renowned Zibo deposit

High-purity synthetic cordierite for consistent quality

Large-tonnage pressing for high density and durability

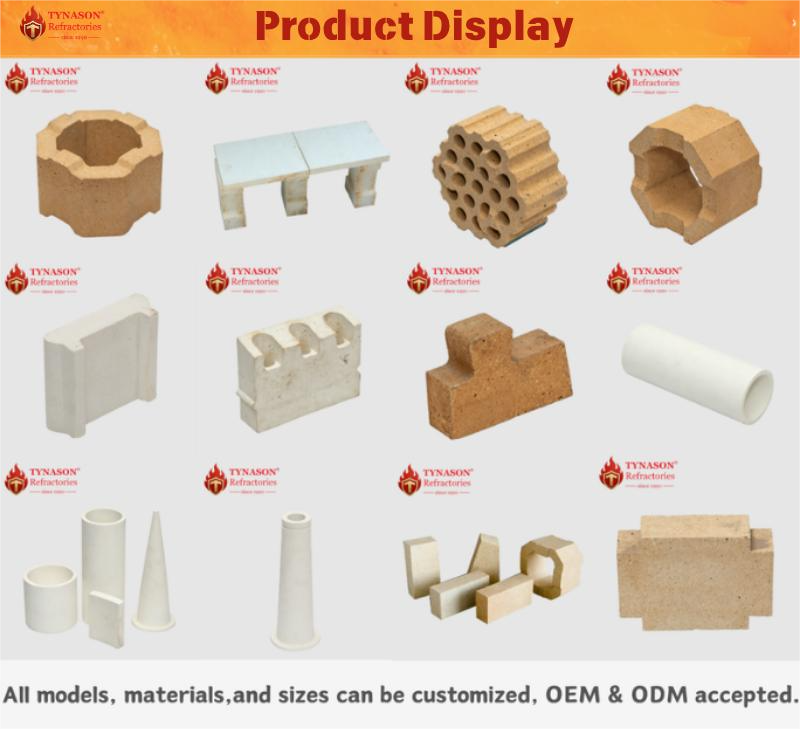

Customized shapes available upon drawing

Exported to more than 20 countries worldwide

【Packaging & Delivery】

Packaging: Standard export packaging – steel pallets with wooden crates or plastic wrapping

Loading Port: Qingdao Port, China

Lead Time: Approximately 30 days after order confirmation. For large orders or custom specifications,

the lead time will be confirmed based on your specific requirements.
